Friday, 27 July 2018

Cannot install IIS (as part of Vault install) on Windows Server

I came across this the other day, when the IIS install failed because 'the source files could not be found' on Windows Server 2016.

You need to locate your source DVD or, in my case, I had the ISO image on the server available to me.

Double click on the ISO image and copy the SOURCE folder to a temporary drive.

In the IIS install, select 'specify an alternate source path'. Point to ....\source\sxs from the copied source folder.

The install should now complete successfully.

Tuesday, 3 April 2018

Autodesk 2019 NLM products - Error [0,0,0]

You get an error [0,0,0] when trying to run Autodesk 2019 NLM products.
Flexlm 11.14 is required to be installed in order to licence 2019 products.

Update Autodesk Licence server here.

Flexlm can be downloaded here.

Monday, 12 March 2018

AutoCAD - Flatten geometry to 2D

How many times do you open up a 2D drawing only to notice that the geometry is on different Z levels!

Try this:

Make sure the layers are unlocked
copy and paste these two lines

(command "MOVE" (ssget "x") "" "0,0,0" "0,0,1e99")
(command "MOVE" (ssget "p") "" "0,0,0" "0,0,-1e99")

Monday, 22 January 2018

Vault Pro Job Processor - PDF Sync errors

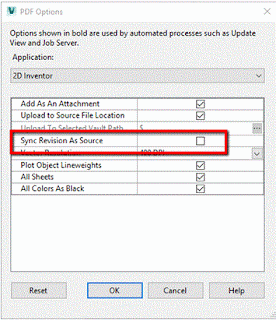

The issue is connected to the option to sync the revision of the pdf file with the revision of the source file. Deactivating this option will solve the problem:
